  • Atlas Copco RH 571-5L Pneumatic Hand Held Surface Rock Drill 7/8" x 4 ¼"

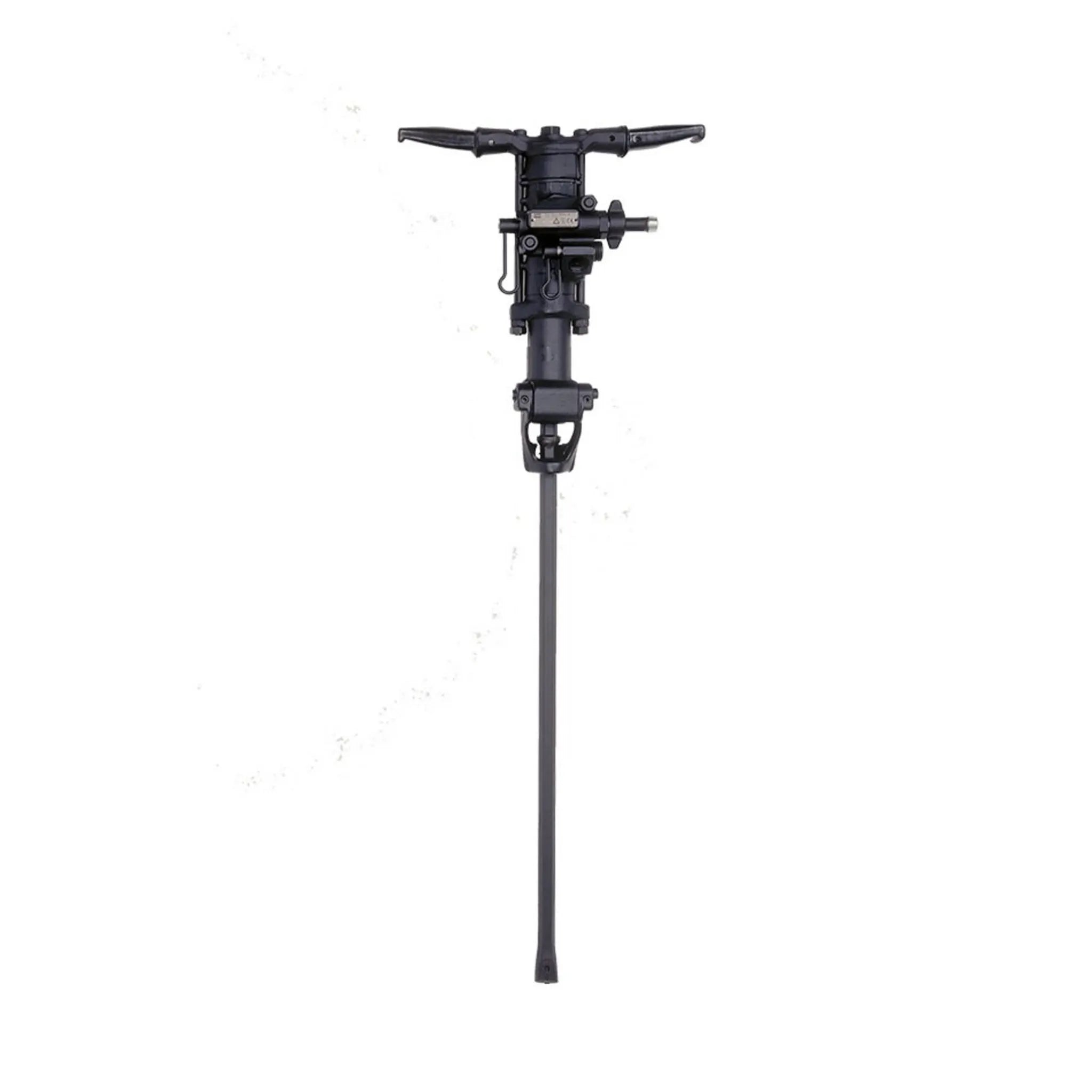

    Atlas Copco RH 571-5L Pneumatic Hand Held Surface Rock Drill 7/8" x 4 ¼"

    Atlas Copco

    8311 0301 29

    $2,321.97

    Thanks to the robust rifle-bar rotation mechanism and high impact energy for drilling in hard rock, the lightweight RH 571 is perfect for smaller jobs. All models are equipped with T-handles to give you a solid, comfortable grip.

    Product Specifications

    Rock drill type Surface rock drill
    Hole range 28 mm - 34 mm
    Weight 17.8 kg
    Length 510 mm
    Air consumption 39 l/s
    Impact rate 2,100 blows/min
    Revolutions 190 rpm
    Penetration rate 295 mm/min
    Hose connection 19 mm
    Piston diameter 55 mm
    Stroke length 60 mm
    Vibration and Sound
    Vibration level 3 axes (ISO 20643) 23.2 m/s²
    Sound power level guaranteed (2000/14/EC) 119 Lw dB(A)
    Sound pressure level (ISO 11203) 106 Lp dB(A)
    Available Shank Sizes
    Shank size: Hex 22 × 108 mm – 7⁄8 × 4 1⁄4 inch
    Part Number 8311 0301 29


    Brochure
